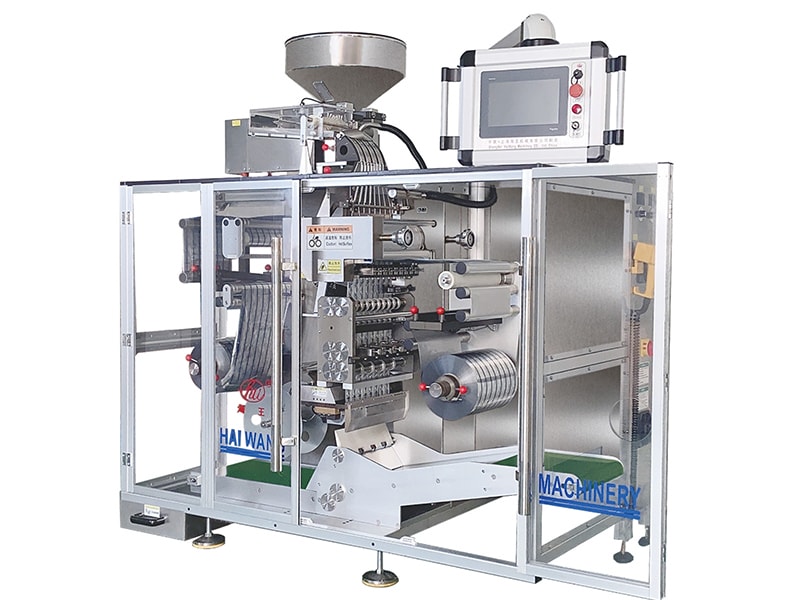

Automatic Alu-Alu Strip Packing Machine
SHW-APM High Speed

SHW-APM High Speed (Capacity: 600-2100 pcs/min)
  • SHW-APM High Speed (Capacity: 600-2100 pcs/min)
  • SHW-APM High Speed (Capacity: 600-2100 pcs/min)
  • SHW-APM High Speed (Capacity: 600-2100 pcs/min)
  • SHW-APM High Speed (Capacity: 600-2100 pcs/min)
  • SHW-APM High Speed (Capacity: 600-2100 pcs/min)

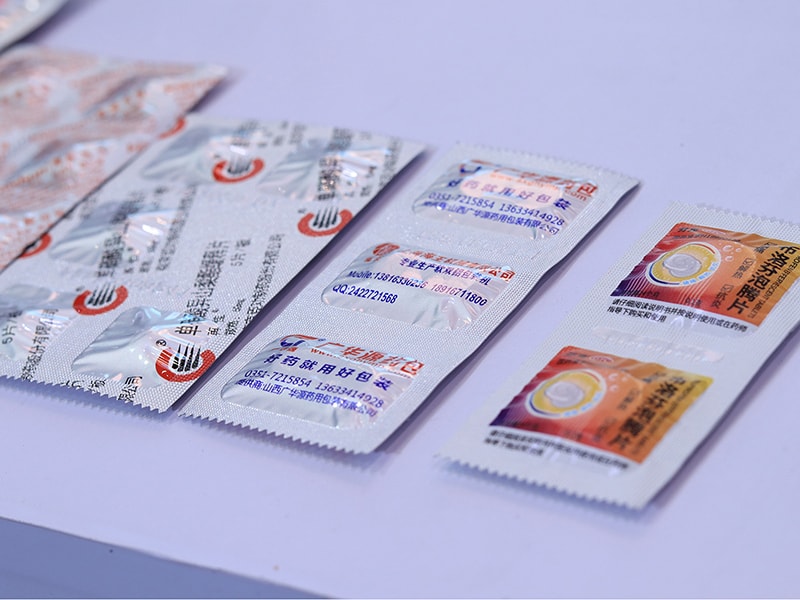

Our automatic Alu-Alu strip packing machine is an pharmaceutical packaging machine designed for large-scale production using aluminum foil or composite film. This strip packaging machine is your ideal choice for sealing tablets, capsules, and other solid dosage products between two layers of packaging material, providing excellent protection against moisture, light, and external contamination.

The automatic strip packaging machine can automatically complete the entire packaging process, including feeding, positioning, heat sealing, cutting, and finished product output. This reduces manual operation and supports continuous, efficient production.

The strip packing machine is built for medium and large pharmaceutical manufacturers that require stable, high-volume production. With a capacity of up to 2,100 tablets or capsules per minute, it helps improve production efficiency while maintaining consistent packaging quality.

Technical Specifications:
Model SHW-APM-160C SHW-APM-280C SHW-APM-320C SHW-APM-360C SHW-APM-420C
Capacity 600 pc/min, 4 lanes 1,200 pc/min, 8 lanes 1,500 pc/min, 10 lanes 1,800 pc/min, 12 lanes 2,100 pc/min, 14 lanes
Max. Web Width (mm) 160 280 320 360 420
Packing Material Roll Diameter 300
Power Supply 380 V AC 50 Hz ( three-phase, five-wire)
Air Supply ⌀8 mm air tube ⌀8 mm air tube ⌀12 mm air tube ⌀12 mm air tube ⌀12 mm air tube
Motor Power (kW) 0.75 0.75 0.75 0.75 1.5
Heating Power (kW) 3 4 5 6 7
Cutting Rows Customizable Customizable Customizable Customizable Customizable
Compressed Air (MPa) 0.45 0.45 0.45 0.45 0.45
Dimensions (L×W×H) 1850×930×1900 mm 1885×1175×1950 mm 1885×1210×2000 mm 1900×1240×2100 mm 1900×1310×2100 mm
Net Weight 600 kg 850 kg 900 kg 950 kg 1000 kg
Key Features: PLC Control

Equipped with a 10-inch touch screen and PLC control system, the strip packing machine allows easy parameter setting and clear operation monitoring. Its fully enclosed structure and built-in safety protection functions help ensure clean production and operator safety.

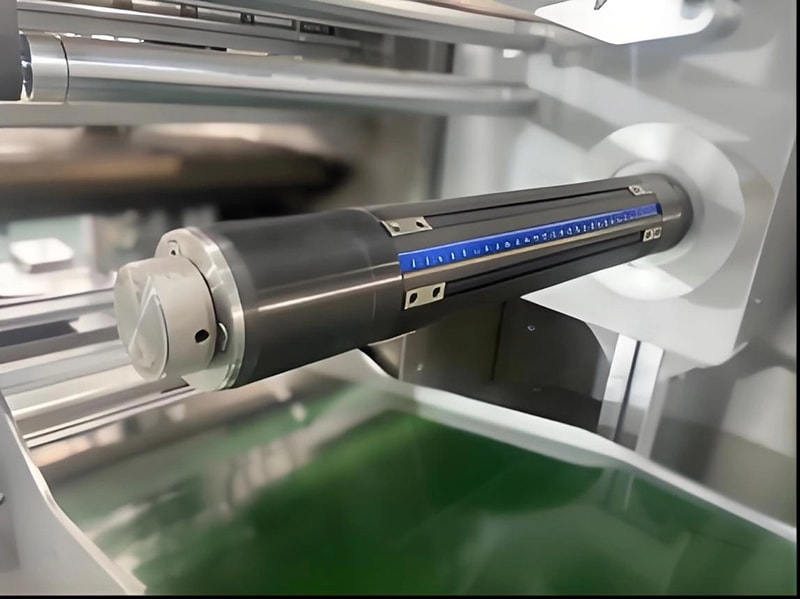

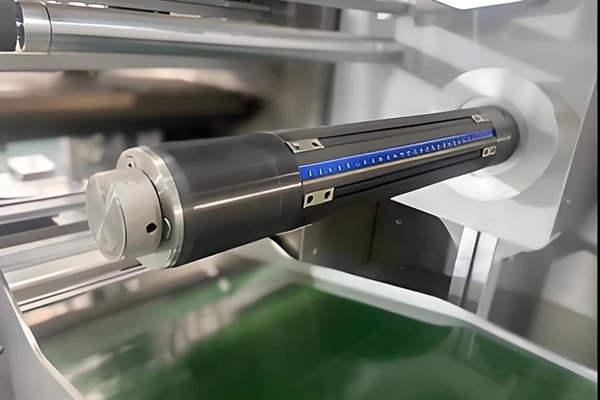

Air Expanding Shaft
Air Expanding Shaft

The air expanding shaft mechanism reduces the locking process to one touch, ensuring safe and handy operations.

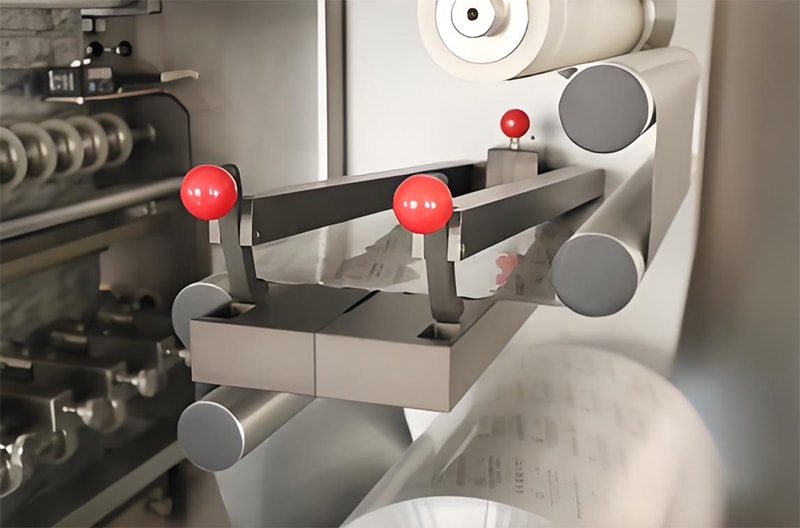

Material Changeover
Material Changeover

The cutting-edge material splicing platform makes material loading and roll replacement faster and easier. This helps reduce downtime, minimize material waste, and improve overall production efficiency.

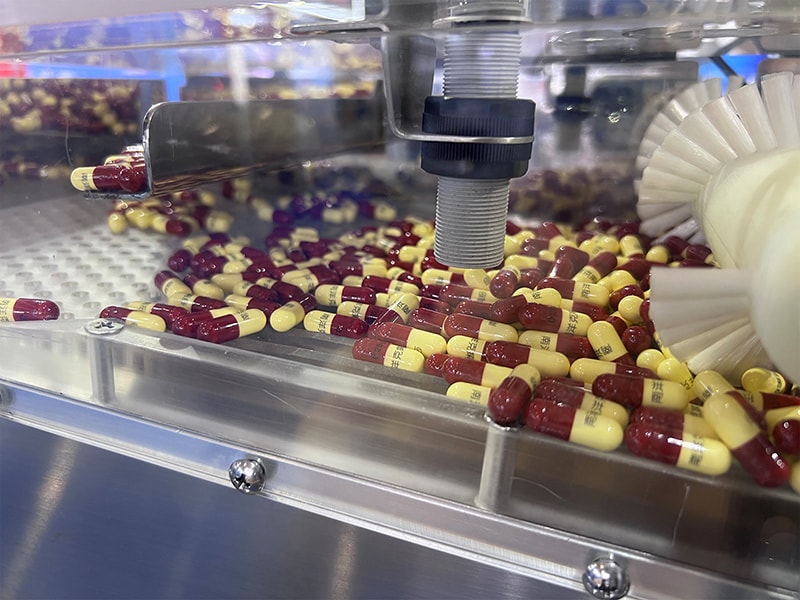

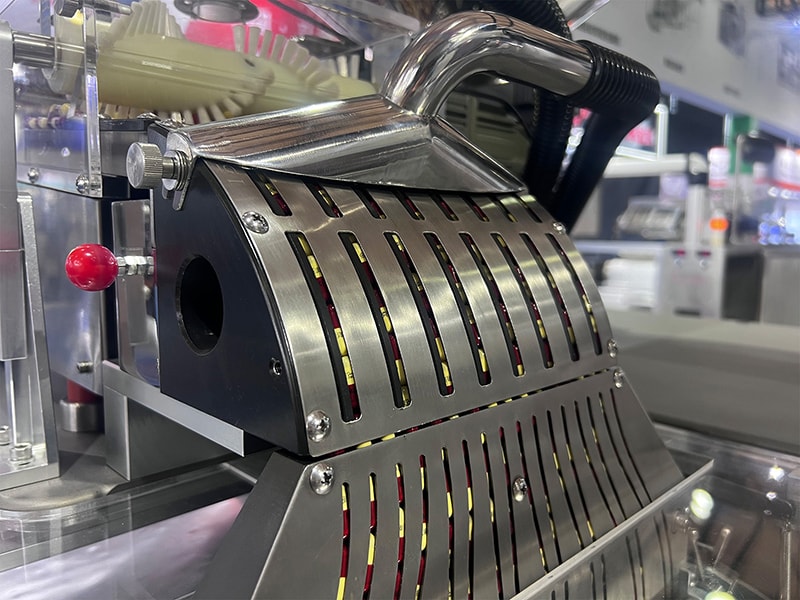

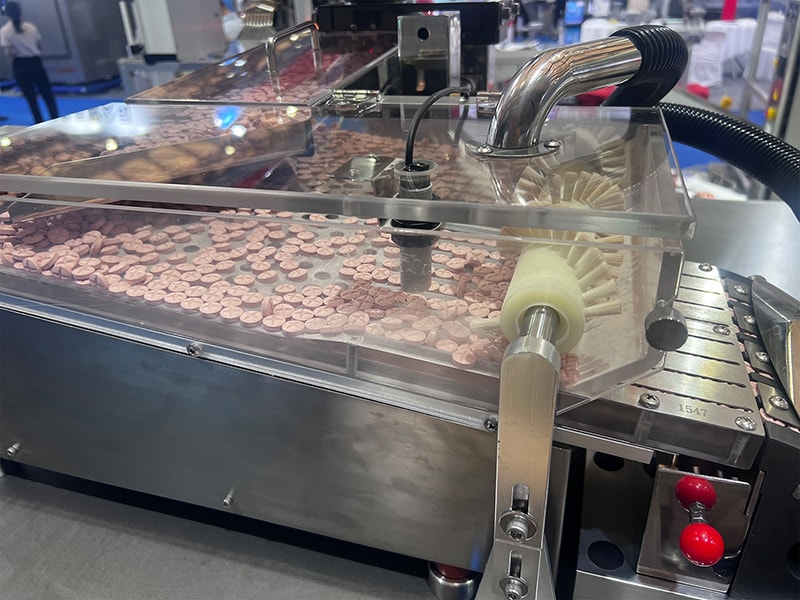

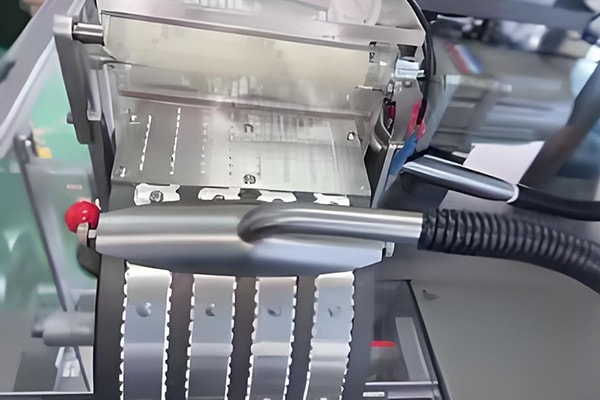

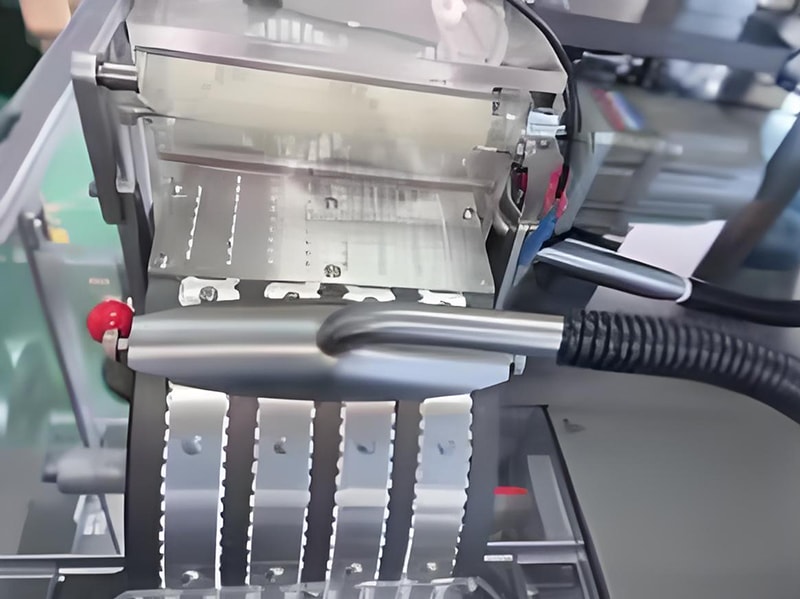

Feeding System
Feeding System

The upgraded feeding system is equipped with an industrial low-noise dust extraction port, which removes dust while automatically feeding the products and rejects half or broken tablets.

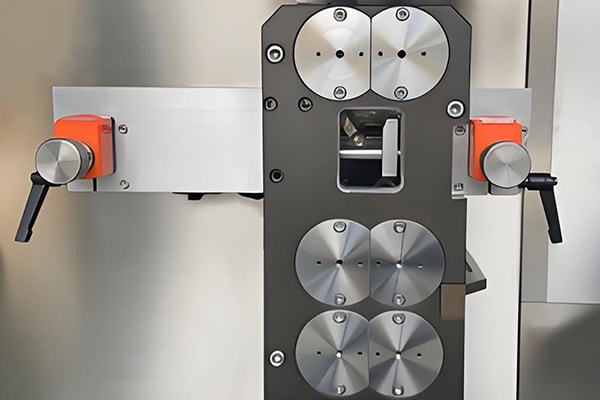

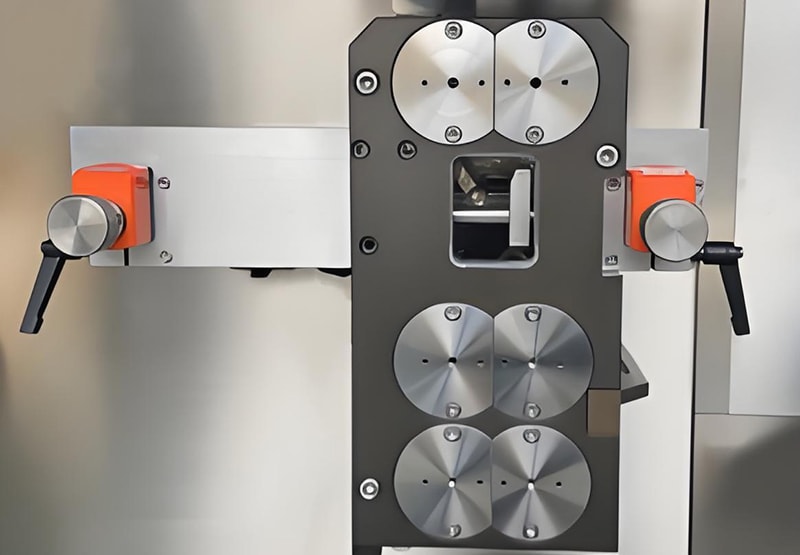

Built-in Memory
Built-in Memory

The built-in mechanical memory device ensures accurate missing-product detection and makes mold changeover faster and easier. It helps operators quickly adjust to different specifications without blind trial-and-error adjustments.

Optional Features:
  • Printing registration
  • Connection with downstream cartoning line
  • Audit trail system, 21 CFR Part 11 compliant
  • Inkjet printing
Pharmaceutical Machinery

Not only do we provide the specifications listed above, but HaiWang provides other packaging equipment for customers to choose from. If nothing shown here meets your needs, please click the link below, or contact us directly, and we will recommend the right equipment for your needs, or provide customized services.

Processing pharmaceuticals requires precision and efficiency and this includes the packaging of these products. HaiWang Machinery Co. has been specializing in designing and manufacturing high-quality pharmaceutical packaging equipment since 2000. As a common type of pharmaceutical equipment, the strip packaging machine is widely used for packing capsules, pills, tablets, etc. HaiWang is a pharmaceutical equipment manufacturer with 2 decades of experience in the pharmaceutical equipment industry, we are able to provide you pharmaceutical machines with reliable qualiy. In order to better serve our customer, we employ more than 20 agents in over 20 countries and regions all over the world.
