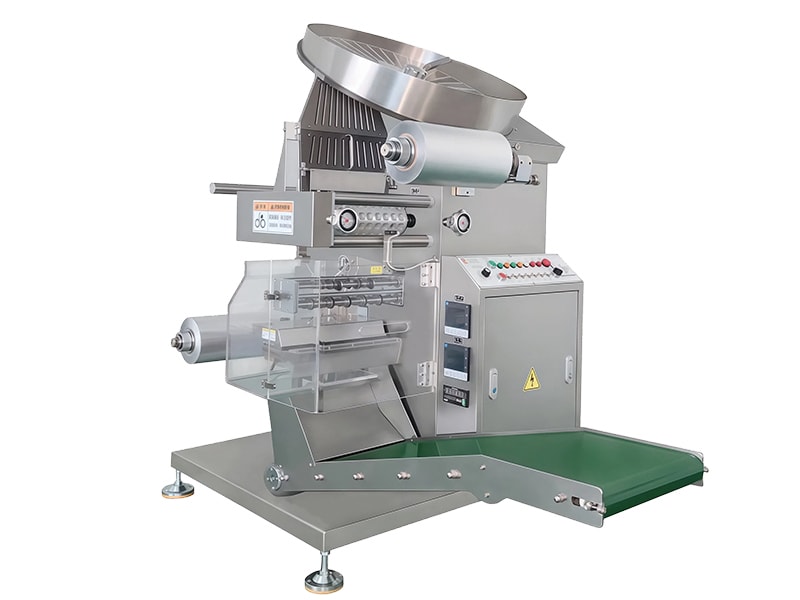

Automatic Alu-Alu Strip Packing Machine
SHW-APM Rotary Disc

SHW-APM Rotary Disc (Capacity: 600-1500 pcs/min)
  • SHW-APM Rotary Disc (Capacity: 600-1500 pcs/min)
  • SHW-APM Rotary Disc (Capacity: 600-1500 pcs/min)

Our Alu-Alu strip packing machine is a specialized pharmaceutical packing machine designed for capsules, irregular-shaped tablets, round tablets, and other products that are difficult to feed with conventional systems.

The automatic rotary disc feeding system can smoothly arrange products, reject half or broken tablets, and ensure stable feeding before sealing.

Key Features:
  • All-in-one integration

    The strip packing machine integrates multiple processes, including inclined rotary disc product sorting and screening, precise external cam-controlled feeding, high-power balanced heat sealing, optional information integration, flexible-layout punching and cutting, finished product output, and connection with automated production lines.

  • Flexible Installation

    The strip packing machine uses a 220V, 50/60Hz power supply and does not require three-phase electricity, making installation more convenient and flexible for different production environments.

  • Compact and Lightweight Design

    With a compact structure and a machine weight of about 450–520 kg, this packaging machine is easy to install and a first choice for production areas where space and mobility are important.

  • Flexible Cutting Layout

    The cutting number can be freely adjusted according to different packaging requirements, allowing the machine to adapt to various product specifications and strip formats.

Technical Specifications:
Model SHW-APM-160CZ SHW-APM-280CZ SHW-APM-320CZ
Capacity 600 pc/min, 4 lanes 1200 pc/min, 8 lanes 1500 pc/min, 10 lanes
Max. Web Width (mm) 160 280 320
Packing Material Roll Diameter (mm) 300
Power Supply 220V, 50/60 Hz
Air Supply ⌀8 mm air tube
Motor Power (kW) 0.75 0.75 0.75
Heating Power (kW) 3 4 5
Cutting Rows Customizable Customizable Customizable
Compressed Air (MPa) 0.45
Dimensions (L×W×H) 1855×860×1600 mm 1855×860×1650 mm 1855×960×1700 mm
Net Weight (kg) 450 480 520
System Components:

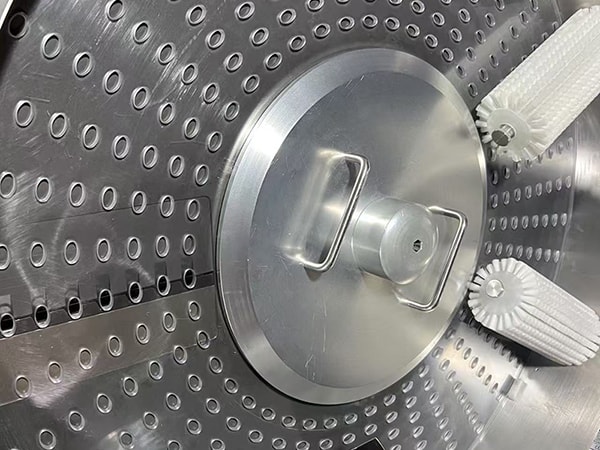

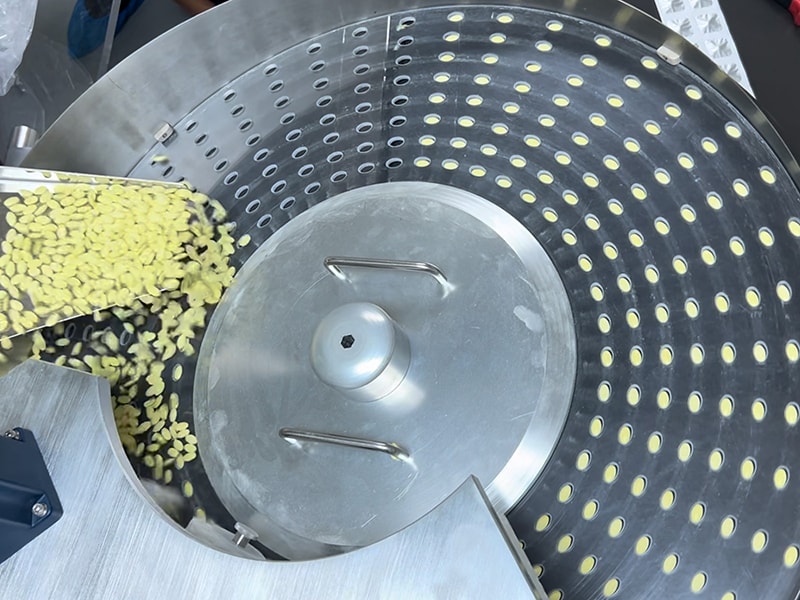

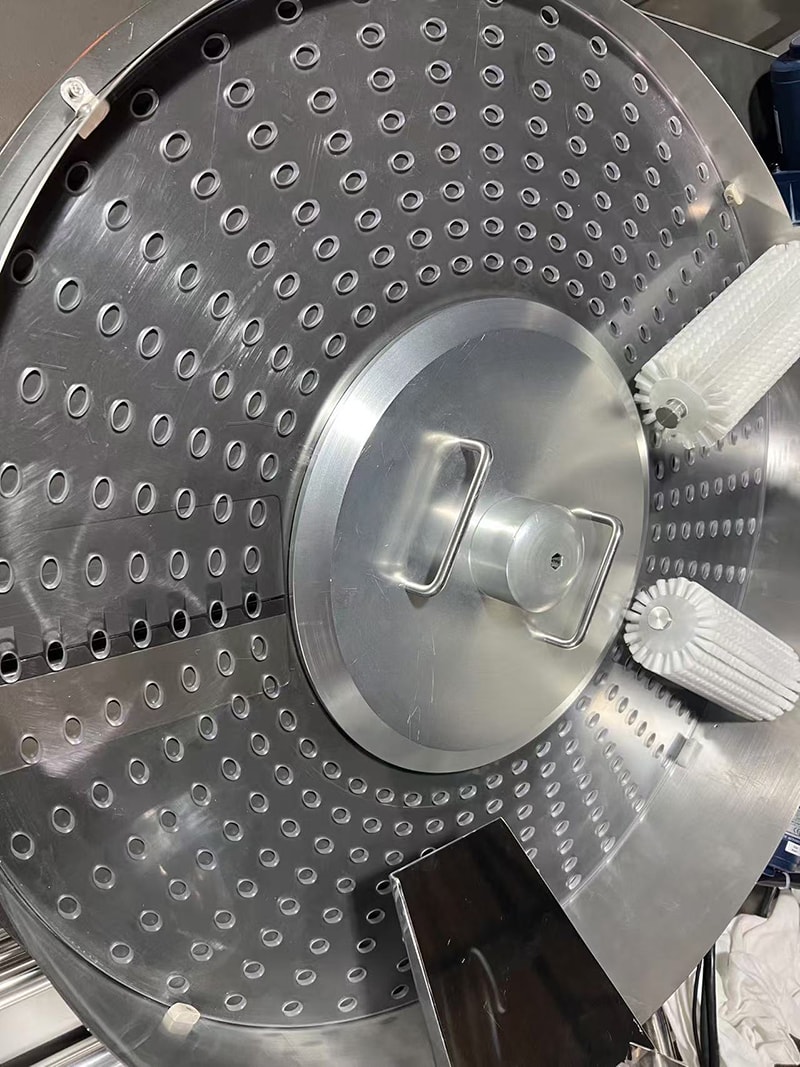

Inclined Rotary Disc Feeding
Inclined Rotary Disc Feeding

The inclined disc feeding structure is specially designed for coated or curved solid tablets. It can screen out tablet fragments, broken tablets, and dust during product feeding. The inclined turntable enables smooth feeding without tablet overlapping, while helping reject tablet fragments, broken tablets, and dust.

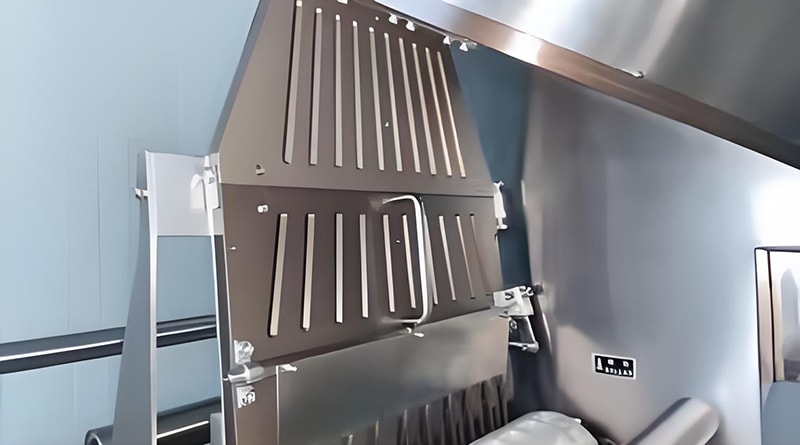

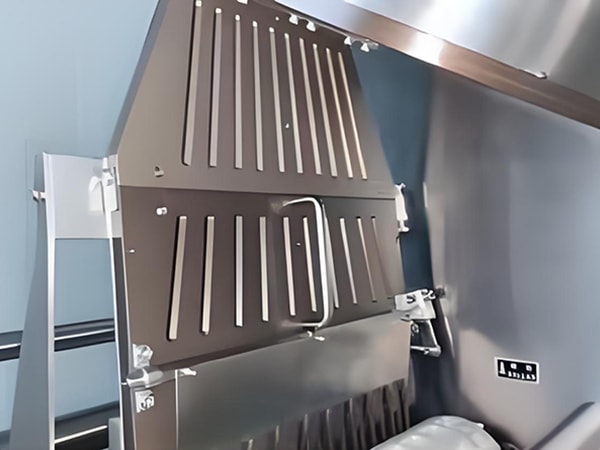

Precise Product Feeding
Precise Product Feeding

The external cam works synchronously with the mold, ensuring accurate product placement with lower feeding noise. This improves packaging precision and supports stable high-speed operation.

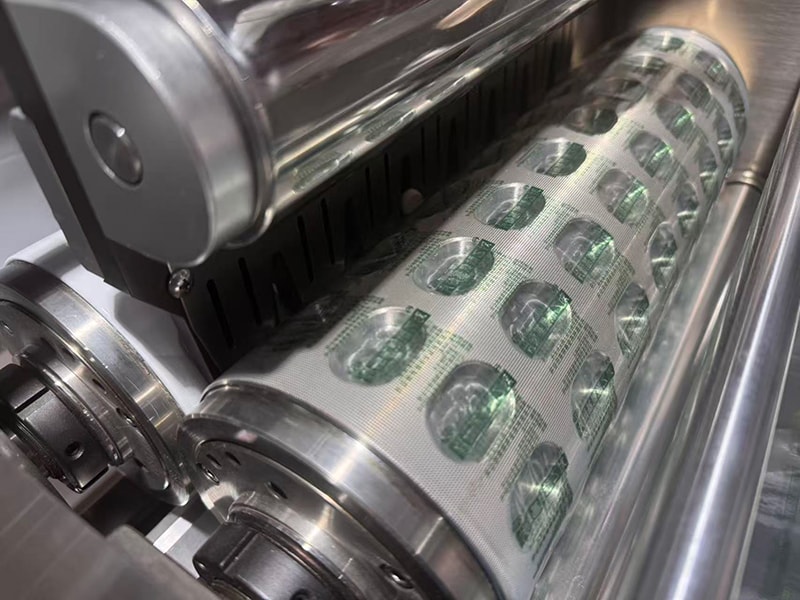

Stable and Even Heat Sealing
Stable and Even Heat Sealing

The sealing rollers provide balanced and stable pressure for smooth sealing results. High-power heating tubes allow faster temperature compensation and more consistent heat distribution, ensuring reliable sealing quality.

Optional Features:
  • Printing registration
  • Connection with downstream cartoning line
  • Audit trail system, 21 CFR Part 11 compliant
  • Inkjet printing
