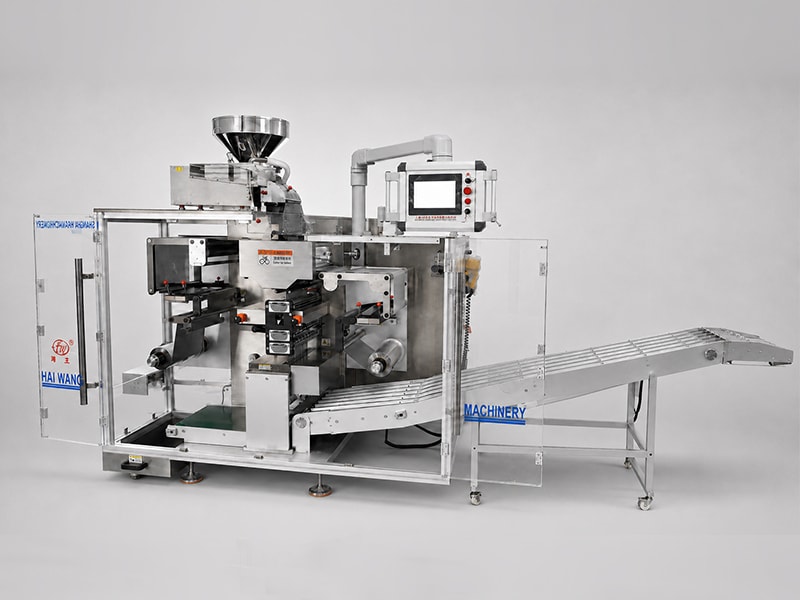

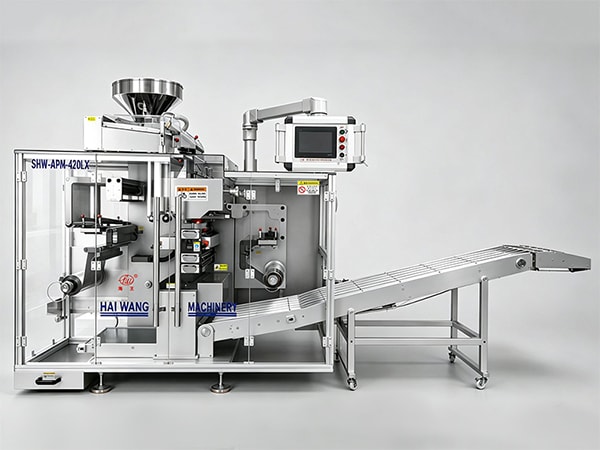

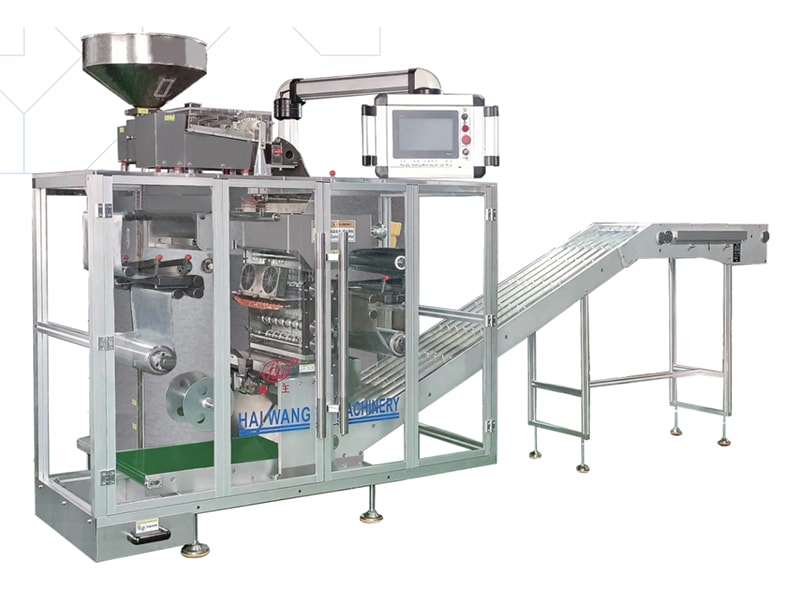

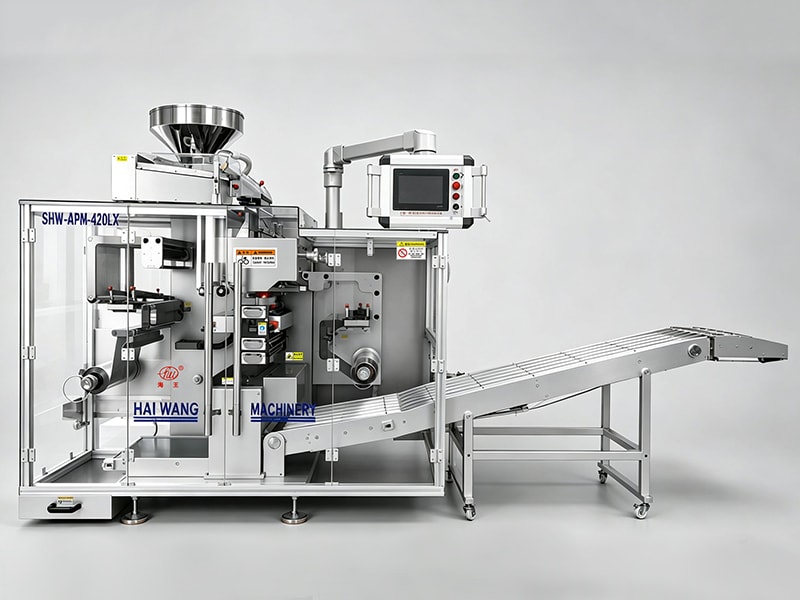

The strip packaging machine with inline cartoner is suitable for continuous aluminum foil strip packaging and cartoning of tablets, hard capsules, softgels, and compatible nutraceutical products

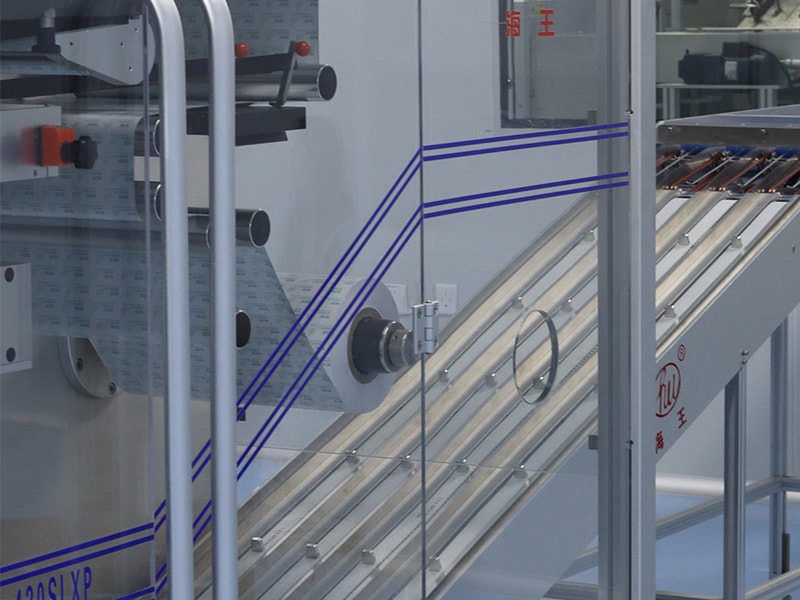

The automated packaging process includes product feeding, packaging material unwinding, heat sealing, web feeding, vertical film cutting, and transversal cutting. The cut finished strips will enter a dedicated product transfer system, where the guide rails or a pick-and-place transfer system maintain product orientation, distribute the strips into separate lanes, and rearrange them before they enter the automatic cartoning machine.

The packaging line can be connected to a cartoning machine from us or be adjusted according to infeed height, infeed direction, line speed, and I/O signals to match the customer’s own cartoning equipment.

We provide optional counting and stacking units for applications requiring multiple strips per carton, accommodating configurations of 5, 10, 20 or other numbers of strips per carton. The specific configurations should be determined based on the strip dimensions, carton dimensions, and required output.

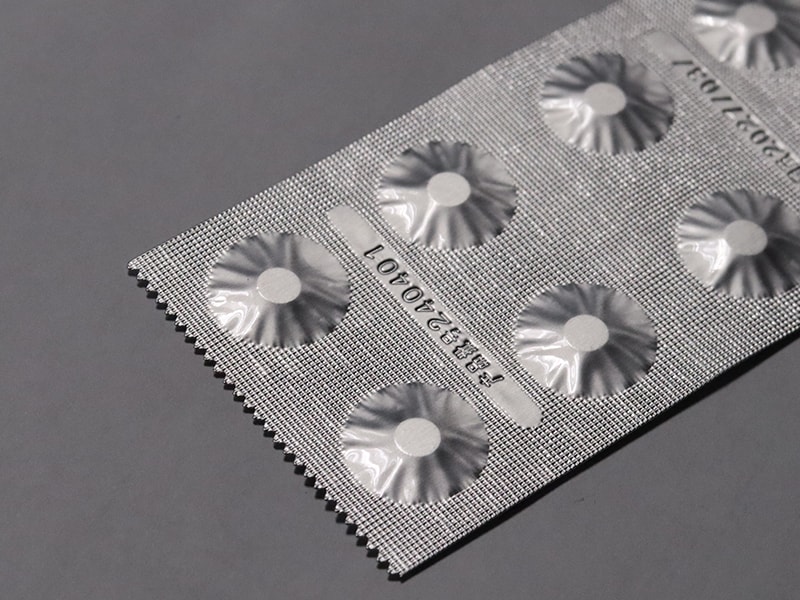

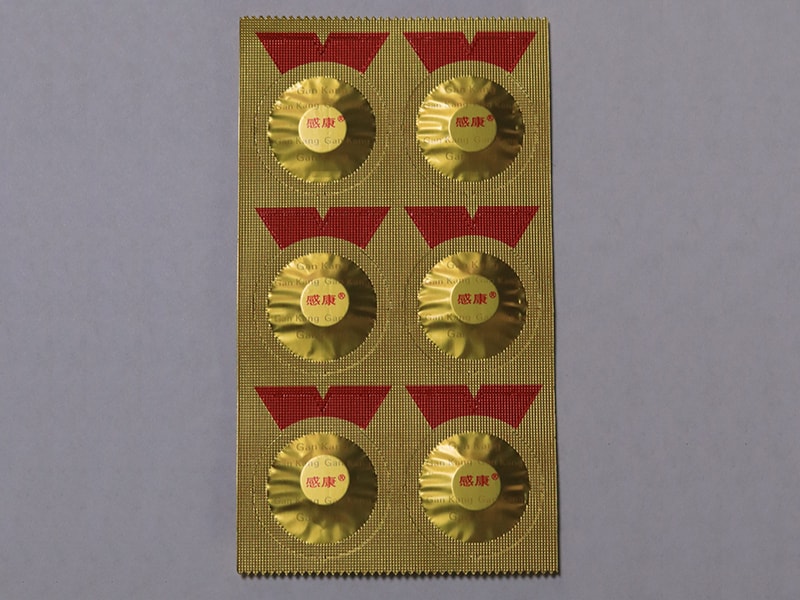

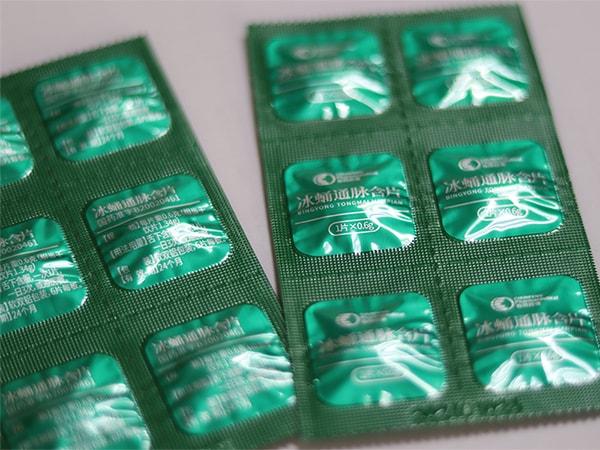

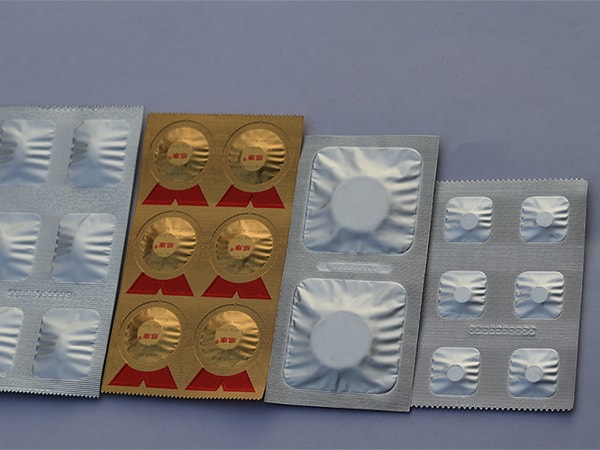

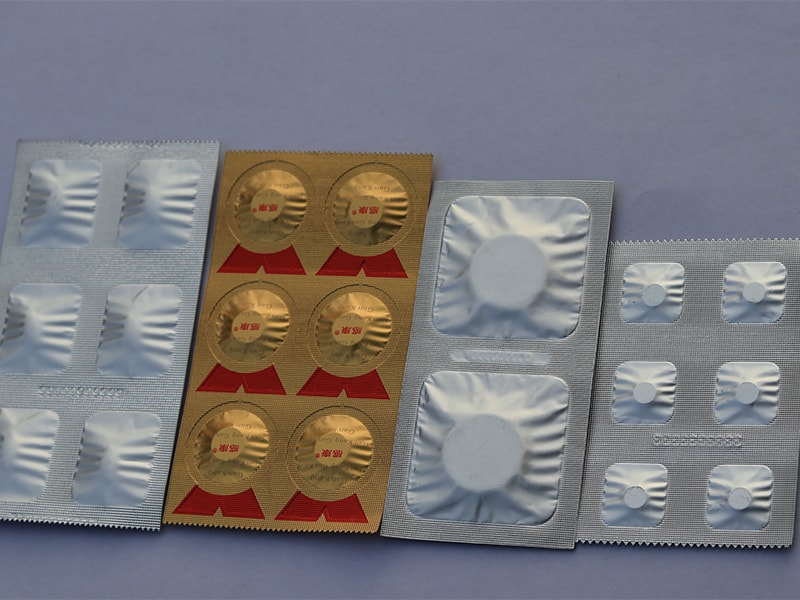

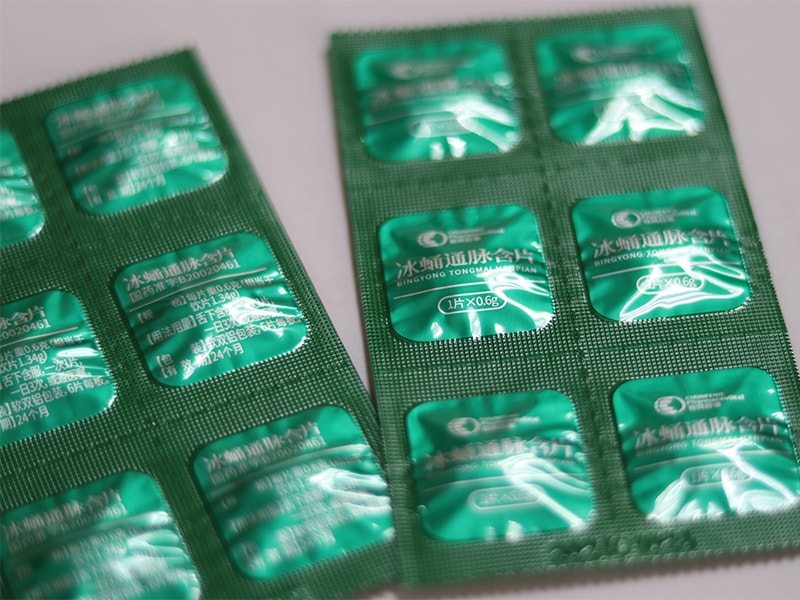

Applications
  • Strip Packaging Machine with Inline Cartoner, SHW Series
  • Strip Packaging Machine with Inline Cartoner, SHW Series
  • Strip Packaging Machine with Inline Cartoner, SHW Series
  • Strip Packaging Machine with Inline Cartoner, SHW Series
Specifications
Model 160LX 280LX 320LX 360LX 420LX 460LX
Output Up to 600
tablets/min		 Up to 1,200
tablets/min		 Up to 1,500
tablets/min		 Up to 1,800
tablets/min		 Up to 2,100
tablets/min		 Up to 2,400
tablets/min
Max. Foil Width 160 mm 280 mm 320 mm 360 mm 420 mm 460 mm
Max. Reel Diameter Ø300 mm Ø350 mm
Power Supply AC 380 V, 50 Hz, 3-phase, 5-wire
Compressed Air Inlet Ø16 mm
Motor Power 0.75 kW 0.75 kW 0.75 kW 0.75 kW 2.2 kW 2.2 kW
Heater Power 4 kW 5 kW 5 kW 6 kW 7 kW 8 kW
Compressed Air Pressure 0.45 MPa 0.45 MPa 0.45 MPa 0.45 MPa 0.45 MPa 0.5 MPa
Cutting Rows per Cycle Any number of rows, set via touchscreen HMI
Dimensions
(L × W × H)		 4010×1100×1950 mm 4180×1180×1950 mm 4180×1180×2050 mm 4180×1230×2050 mm 4280×1300×2050 mm 4180×1350×2050 mm
Weight 900 kg 1,050 kg 1,100 kg 1,200 kg 1,300 kg 1,350 kg
