Automatic Alu-Alu Strip Packing Machine
SHW-APM Compact

SHW-APM Compact (Capacity: 600-1500 pcs/min)
SHW-APM Compact (Capacity: 600-1500 pcs/min)

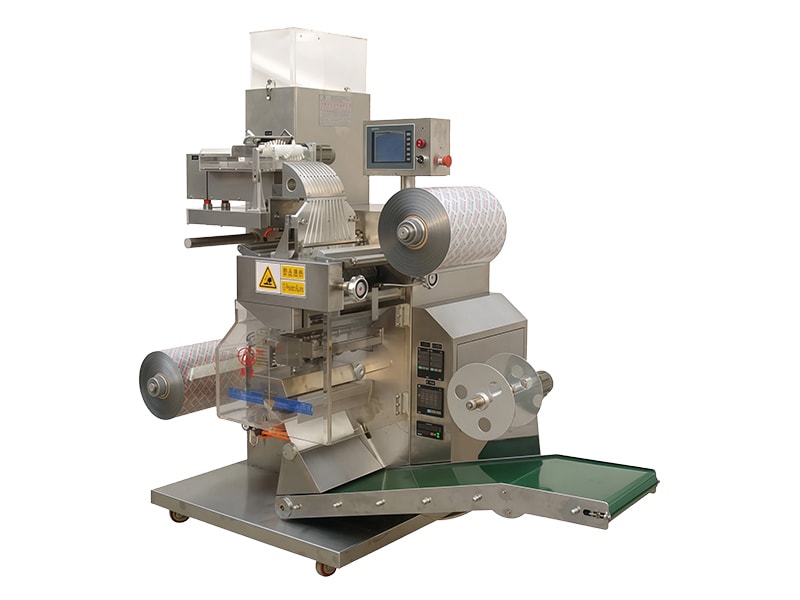

This compact type automatic Alu-Alu strip packing machine is a cost-effective pharmaceutical packaging solution upgraded with a touch screen and PLC control system. Designed for tablets, capsules, and other solid dosage forms, this strip packaging machine is especially suitable for small to medium production needs and cleanrooms with limited space.

Key Features:
  • Space-saving Compact Design

    Equipped with a PLC touch screen and VFD speed control, the strip packaging machine allows operators to set and adjust key parameters directly on the screen, including cutting layout and production speed.

  • Modular Stations for Quick Changeover

    The core working stations adopt a modular design, making assembly, disassembly, and specification changeover faster and easier. This helps reduce adjustment time when switching between different products or packaging formats.

  • PID Temperature Control

    Stable heat sealing performance is ensured with PID automatic temperature control and high-power heating tubes. This carefully-designed mechanism provides direct and even heating to the sealing rollers, offering fast temperature compensation, uniform heat distribution, and reliable sealing quality.

Technical Specifications:
Model SHW-APM-160 SHW-APM-280 SHW-APM-320
Capacity 600 pc/min, 4 lanes 1200 pc/min, 8 lanes 1500 pc/min, 10 lanes
Max. Web Width (mm) 160 280 320
Packing Material Roll Diameter (mm) 300
Power Supply 220V，50/60 Hz
Air Supply ⌀8 mm air tube
Motor Power (kW) 0.75 0.75 0.75
Heating Power(kW) 3 4 5
Cutting Rows Customizable Customizable Customizable
Compressed Air(MPa) 0.45
Dimensions (L×W×H) 1770×860×1800 mm 1800×960×1850 mm 1855×960×1900 mm
Net Weight (kg) 500 600 700
Optional Features:
  • Connection with downstream cartoning line
  • Inkjet printing
Pharmaceutical Machinery

Not only do we provide the specifications listed above, but HaiWang provides other packaging equipment for customers to choose from. If nothing shown here meets your needs, please click the link below, or contact us directly, and we will recommend the right equipment for your needs, or provide customized services.

Processing pharmaceuticals requires precision and efficiency and this includes the packaging of these products. HaiWang Machinery Co. has been specializing in designing and manufacturing high-quality pharmaceutical packaging equipment since 2000. As a common type of pharmaceutical equipment, the strip packaging machine is widely used for packing capsules, pills, tablets, etc. HaiWang is a pharmaceutical equipment manufacturer with 2 decades of experience in the pharmaceutical equipment industry, we are able to provide you pharmaceutical machines with reliable qualiy. In order to better serve our customer, we employ more than 20 agents in over 20 countries and regions all over the world.
